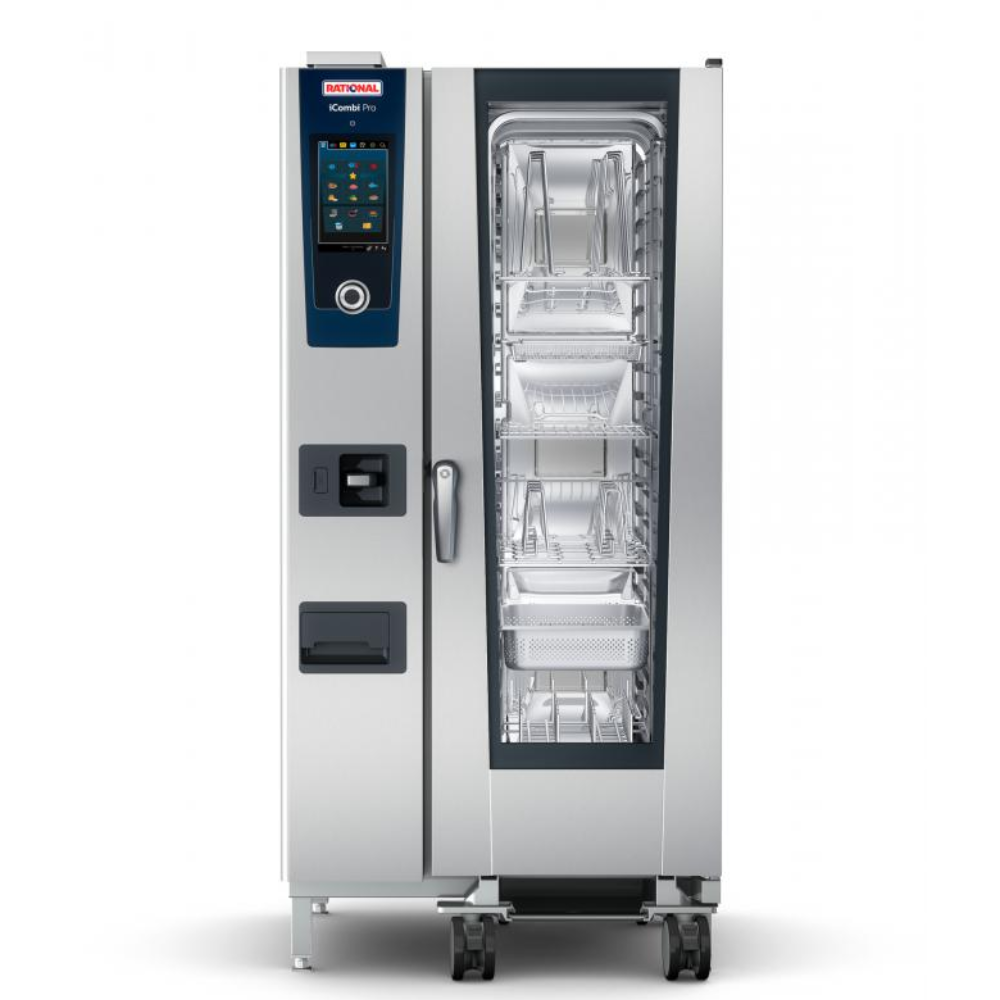

Rational Combi Ovens 20-1/1
Basic data
| Capacity |
20 x 1/1 GN
|
|---|---|
| Number of meals per day |
150–300
|
| Lengthwise loading |
1/1, 1/2, 2/3, 1/3, 2/8 GN
|
| Width |
877 mm
|
| Depth |
913 mm
|
| Height |
1807 mm
|
| Water inlet |
R 3/4“
|
| Water outlet |
DN 50
|
| Water pressure |
1,0 – 6,0 bar
|
Electric
| Weight |
263 kg
|
|---|---|
| Connected load |
37,2 kW
|
| Fuse |
3 x 63 A
|
| Mains connection |
3 NAC 400 V
|
| “Hot air” output |
36 kW
|
| “Steam” output |
36 kW
|
Gas
| Weight |
284 kg
|
|---|---|
| Height incl. flow guard |
–
|
| Electrical connected load |
1,3 kW
|
| Fuse |
1 x 16 A
|
| Mains connection |
1 NAC 230 V
|
| Gas supply/connection |
3/4″ IG
|
Natural gas/liquefied petroleum gas LPG
| Max. nominal heat input |
42 kW/42 kW
|
|---|---|
| “Hot air” output |
42 kW/42 kW
|
| “Steam” output |
38 kW/40 kW
|
